GPR Software
GPR Process
This is a workhorse for GPR processing that makes amplitude maps.
It must use reflection profiles that are in .dzt format (GSSI). We now have the ability to convert Mala, Sensors and Software and soon IDS profiles to .dzt format within the GPR Viewer software (linked below). The instructions on how to do that are in the GPR Viewer manual at the very end.
Click on the highlighted link above for the software and instructions, which are zipped together for the amplitude re-sampling and slicing software:
GPR Viewer
This is the two-dimensional profile analysis software that many hundreds of users around the world tell me is the very best for what it does. It creates visual images of profiles, adjust axes, removes background, calculates velocity and many other tasks.
This program will process individual reflection profiles. This recent version will also open SIR-4000 system files (as long as you have those .dzx files in the same folder as the .dzt files!). You can then save them as other formats, such as Sensors and Software or Mala Files. I use this new Viewer file to open SIR-4000 files (I don’t yet have a 4000 system) and save them as dzt files from the SIR-10 days (this is old-school, but all the data are still there). This is important for some of us as the GPR Process program (above) will only process the SIR-10 version .dzt files. I know….I need to update that slicing software, but have not gotten around to it and the time it takes to just convert files to the SIR-10 format is much less than re-writing the software. And I am not making any money on this software, so what is the point?
This will re-gains profiles, remove background, change scales and convert times to depth. It can also adjust for topography, calculate velocity from hyperbolas and do other common processing steps. I use this to produce images of profiles for publications
Also you may want to convert SIR-4000 or Sensors and Software or Mala system files to GSSI SIR-10 format for slicing, there is a little tricky in the GPR Process software that forces you to have your files named file1.dzt, file2.dzt etc. You can very quickly just change their names in batch mode using this free app, which I use all the time: http://www.bulkrenameutility.co.uk
Other Software
Other Programs: these are “old school” DOS programs that will do migration and frequency filtering in batch mode. Most of you will hate them! But they are “tried and true”. Click below if you are interested, and write me if you have troubles.

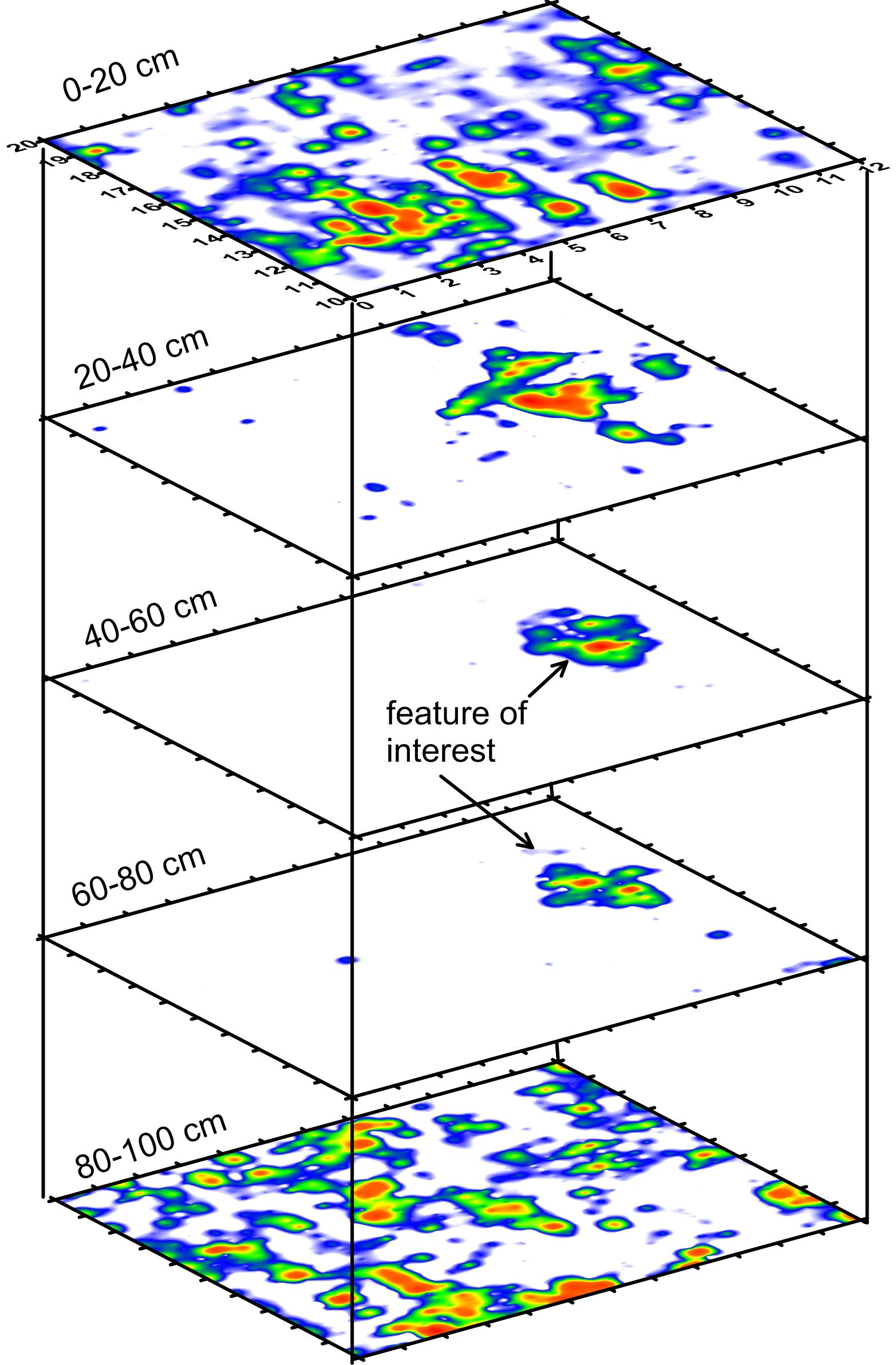

This is a map showing how some of these processing programs can significantly “clean up” and enhance reflections prior to slicing and producing images. You will have to write me for information about these more esoteric programs. See some slice maps I produced below that illustrate what can be done with this type of data processing
